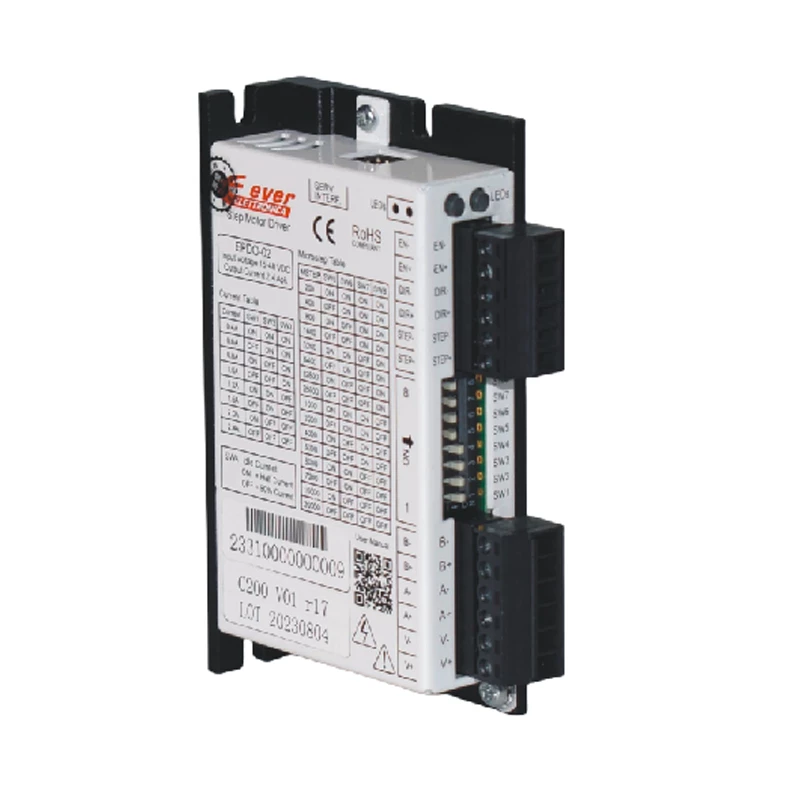

Pulse driven EPD0-02

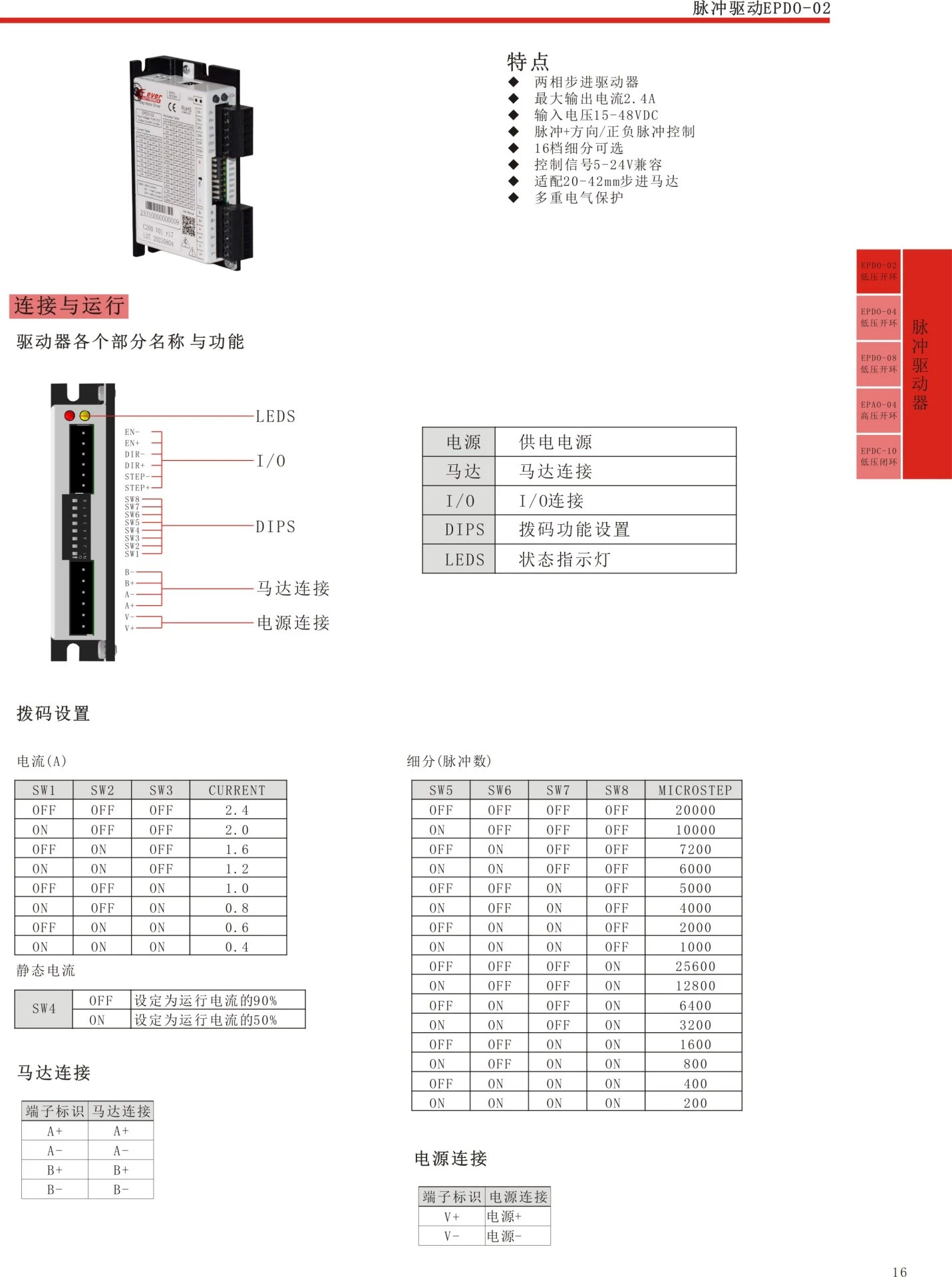

Two phase stepper driver, maximum output current 2.4A, input voltage 15-48VDC, pulse+direction/positive/negative pulse control, 16 level subdivision optional control, signal 5-24V, compatible with 20-42mm stepper motors, multiple electrical protections
Product Details
